Mixer to Amplifier Connection: A Practical Guide
Learn how to safely connect a mixer to an amplifier with proper cables, gain staging, and impedance matching. This practical guide covers setup, common mistakes, troubleshooting, and best practices for home studios, bars, and casual setups.
To complete a mixer to amplifier connection, start by routing the mixer's main outputs to the amplifier's line inputs, set gains conservatively, and use the right cables. Ensure impedance matches and monitor levels with a test signal.
Understanding the signal path: mixer outputs, amplifier inputs, and why proper connection matters
A strong understanding of the signal path is the foundation of a reliable mixer to amplifier connection. The mixer’s main outputs carry the final mix and feed the amplifier’s line inputs, which in turn drive the loudspeakers. If any link in this chain is mismatched—whether through wrong cable type, incorrect gain, or a mismatched impedance—the result is noise, distortion, or even equipment stress. According to Mixer Accessories, taking time to map out which outputs feed which inputs helps you choose cables, set levels correctly, and protect your gear from damage. In practical terms, the goal is to preserve signal integrity from the moment you press play to the moment sound leaves the speakers. This section sets the stage for the hands-on steps that follow, with examples you can apply in a home studio, a coffeehouse gig, or a small rehearsal space.
Output types and cable options: balanced vs unbalanced, TRS, XLR, RCA, and impedance matching
Not all outputs and inputs are created equal. A mixer typically offers main outputs that can be balanced (XLR or TRS) or unbalanced (RCA). A powered amplifier or a separate power amp commonly accepts a variety of line-level inputs, including XLR, TRS, RCA, or Speakon for speaker loads. The key is to match the signal type to the input’s expectations. If you connect a balanced output to an unbalanced input, you’ll still be protected against many noise sources, but you may lose some common-mode rejection unless you use the right adapters. When impedance matching is poor, you can experience hiss, hum, or reduced headroom. In practice, always prefer balanced connections where feasible, verify the input type on the amplifier, and choose the cable that aligns with both devices.
Balanced vs unbalanced signals: when to use which and how it affects noise
Balanced connections (XLR or TRS) carry two signal conductors plus a shield, which helps cancel noise picked up along the run. This is particularly valuable on longer cable runs or in venues with ambient interference. Unbalanced connections (often RCA or TS) are common in consumer gear and short, casual setups. They’re simpler but more prone to hum over longer distances. The choice depends on the equipment you own: if both ends support balanced signals, use balanced cables for higher fidelity and lower noise. If your equipment only offers unbalanced options, keep runs short, keep cables away from power lines, and consider a DI box to regain some balance in the signal path. In all cases, maintain solid shielding and avoid mixing cable types mid-run to prevent impedance surprises.
Cable quality and layout practices: shielding, length, routing
Quality matters when connecting a mixer to an amplifier. High-quality shielded cables with robust connectors reduce the risk of microphonic noise and RF interference. Longer cable runs increase the chance of noise pickup, so choose the shortest practical length for each connection. Route signal cables away from power cords, speakers’ outputs, and lighting rigs to minimize interference. Labeling and organizing cables makes it easier to diagnose problems quickly. For critical paths, such as the main outputs to the amp, invest in well-made, shielded cables with good strain relief to prevent connector failure during transport.
Grounding and hum: detecting and eliminating ground loops
Ground loops are a frequent antagonist in mixer to amplifier setups. They happen when devices are grounded at different points, creating a loop that injects hum into the signal. To diagnose, try lifting the ground with a ground-lift adapter on a DI box or experiment with a different power outlet circuit. If hum persists, test each device in isolation to identify the culprit. A simple trick is to temporarily unplug other equipment and re-check. In a controlled environment, using a proper power conditioner and consistently grounded outlets substantially reduces recurring hum and ensures stable operation.
Safety considerations: power, grounding, and phantom power caveats
Always power down equipment before changing connections to prevent pops and potential surges. Verify that the amplifier can handle the line-level signal from the mixer and that you’re not feeding speaker outputs into line inputs. Phantom power is for mics and can damage some line inputs, so keep phantom power off unless you’re actively using a mic with a front-panel switch. If you’re unsure about the impedance or sensitivity of a given input, consult device manuals or contact the manufacturer. A cautious approach—test at low levels first, then increase after confirming clean signal—saves gear and ears alike.
Common mistakes and how to avoid them
Common mistakes include using speaker outputs to drive line inputs, mixing unbalanced cables with balanced paths, and neglecting proper gain staging. Also, avoid daisy-chaining multiple gains or amplifiers without appropriate isolation, which can create feedback loops. Before performing live shows, rehearse at modest levels to ensure the system remains stable under stress. Keeping a log of each device’s output/input types and recommended cables helps you avoid repeat errors in future setups.

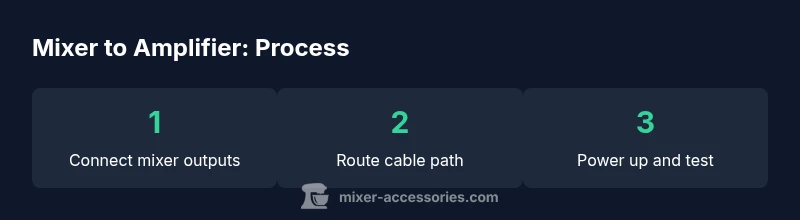

Step-by-step best-practice setup: the safe, repeatable workflow
To create a reliable mixer to amplifier connection, follow a repeatable workflow. First, power down all equipment and inspect cables for wear. Next, identify the main outputs on the mixer and the line inputs on the amplifier. Then, select the appropriate cables (balanced XLR or TRS preferred) and connect the path from mixer to amp. Finally, power up devices in the correct sequence and begin with conservative gain settings, gradually increasing until you hear clean level without distortion. This repeatable approach minimizes surprises in live or rehearsal settings.
Troubleshooting quick checks when nothing seems to work
If you hear hum, distortion, or no sound, first recheck the cable connections for tightness and correct routing. Verify that the mixer’s main output is routed to the amplifier’s line input, not the speaker output. Check that the amplifier is powered and that its input is set correctly for line-level. When in doubt, swap to a different cable, test with a known-good signal, and isolate each device to identify where the fault lies.
How to integrate with monitors and multiple amps
If your setup includes stage monitors or multiple amplifiers, plan signal routing carefully. Use a dedicated monitor mix or split the main output with a reliable distribution method that preserves level and phase. Ensure that each amp receives an appropriate, matched input and that monitor cables do not cross paths with power cables. Label every run and consider using DI boxes where appropriate to preserve impedance and shielding across the system.
Tools & Materials
- XLR to XLR balanced cable(Length should suit the venue; 6-20 ft is common for small gigs)
- 1/4-inch TRS to TRS cable(Use for balanced line-level connections where outputs are TRS)
- RCA to RCA cable(Use only if amplifier inputs are RCA and balanced options are unavailable)
- DI box (active or passive)(Helpful when converting unbalanced consumer gear to balanced outputs)
- Ground-lift adapter(Useful for breaking ground loops if hum appears)
- Cable ties / Velcro straps(Keeps cables organized and reduces tripping hazards)
- Power strip or surge protector(Use with proper load management to protect gear)
Steps
Estimated time: 15-25 minutes
- 1
Power down
Power off all devices and unplug from mains before touching any cables. This protects you and your gear from shocks or surges. Check that there are no loud sounds when power is reconnected.
Tip: Unplug the power strip before swapping cables to prevent accidental powering on. - 2
Map outputs to inputs
Identify the mixer’s main outputs and the amplifier’s line inputs. If your mixer outputs XLR/TRS, plan to use a balanced path. If your amp only accepts RCA, plan to adapt accordingly with proper adapters or a DI box.
Tip: Label each connection so you can recreate the setup next time. - 3
Select cables
Choose balanced XLR or TRS cables for the main path. Keep the cables as short as practical to minimize signal loss and noise pickup. Avoid running signal cables parallel to power lines.
Tip: Prefer 1/4 - 4
Connect and route
Connect the mixer’s main outputs to the amplifier’s inputs using the chosen cables. Make sure the connections are snug and that you’re not feeding the speaker outputs into line inputs.
Tip: Use a DI box if you must convert unbalanced to balanced before the amp stage. - 5
Initial gain staging
Set mixer channel gains and the master level to conservative values, typically around 9 o'clock or lower. This minimizes the risk of clipping when you first apply signal. If you have metering, aim for peaks around -12 dBFS on digital meters.
Tip: Always start with the master fader down, then raise gradually while monitoring for distortion. - 6
Test with known signal
Play a simple signal at a low level and listen closely. Check for hum, crackling, or distortion. If anything sounds off, pause, recheck connections, and adjust levels before continuing.
Tip: If you hear hum, re-evaluate grounding and consider a ground-lift solution. - 7
Monitor and adjust
Stand at the listening position and adjust gain staging to achieve clean, undistorted sound with adequate headroom. If feedback appears, reduce high-frequency content or reposition microphones and monitors.
Tip: Use a separate monitor mix to prevent stage monitors from feeding back into the main path.
Your Questions Answered
Can I connect an unbalanced mixer to a powered amplifier?
Yes, you can, but you may experience more noise on longer runs. Use balanced paths where possible and consider a DI box or adapter to better manage impedance and noise.
Yes, you can connect unbalanced to a powered amplifier, but expect more noise unless you keep the run short or add a DI box.
What cable should I use for a mixer to amplifier connection?
Use balanced XLR or TRS cables when both devices support them. If the amplifier only accepts RCA, use the appropriate adapter or a DI box to preserve signal integrity.
Balanced XLR or TRS cables are best; if you must use RCA, adapt carefully with a DI box.
Do I need a DI box?
A DI box helps convert unbalanced to balanced signals and can reduce noise, especially when inputs far from the mixer or when long cable runs are required.
A DI box can help with unbalanced signals and long runs to improve noise performance.
Why is there hum after connecting?
Hum usually comes from grounding issues or impedance mismatches. Check ground paths, move cables away from power sources, and test with shorter runs or DI boxes where appropriate.
Hum is usually a grounding or impedance issue—check grounds and keep signal cables away from power lines.
Can I use RCA cables for everything?
RCA cables are common in consumer gear but are more prone to noise. Use RCA only if both devices require it and keep runs short; otherwise, switch to balanced cables.
RCA can work, but balanced cables are better for noise immunity; keep runs short if you must use RCA.
Is phantom power an issue when connecting to an amplifier?
Phantom power is intended for microphones, not line-level signals. Ensure phantom power is off unless you’re using a mic that requires it to prevent damage to line inputs.
Phantom power is for mics; turn it off for line-level paths unless your mic requires it.
Watch Video
Top Takeaways
- Power down before changing connections
- Prefer balanced paths to minimize noise
- Match outputs to inputs carefully
- Test at low levels, then increase gradually
- Document your setup for future gigs
